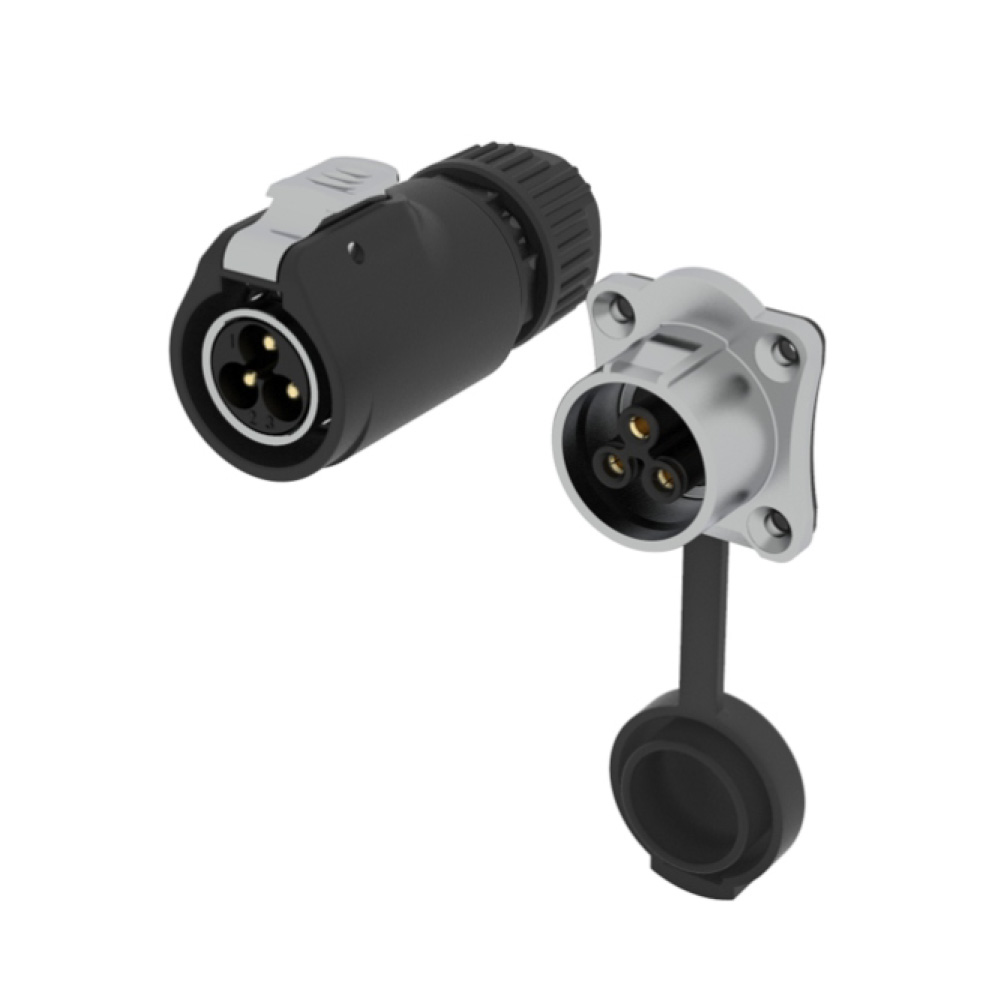

| Item number | Product Information |
|---|---|
| NPA16M3M-S-2Au-A0 | Three core gold-plated connector plug |
| NPA16F3F-S-2Au-A1 | Three core gold-plated connector socket |
Lockable device AC connector
High current capacity rated at 10A/400VAC
High performance engineering plastics and zinc alloy chrome plated shells are very sturdy, reliable, and durable
UL5VA flame retardant material has good weather resistance and UV impact resistance
Provide IP65 compliant connection protection
Number of contacts: 3 cores
Contact: Copper alloy gold-plated male pin, bronze gold-plated female pin
Applicable wire diameter: outer diameter<∅ 9mm, wire specification 1.5mm ²/16AWG
Rated voltage and current: 400VAC/10A
Contact resistance: ≤ 3m Ω
Insulation resistance:>5000M Ω
Voltage endurance: 2KV
Wiring type: Welding type
Working temperature: -25 ℃~85 ℃
