| Item number | Product Information |
|---|---|

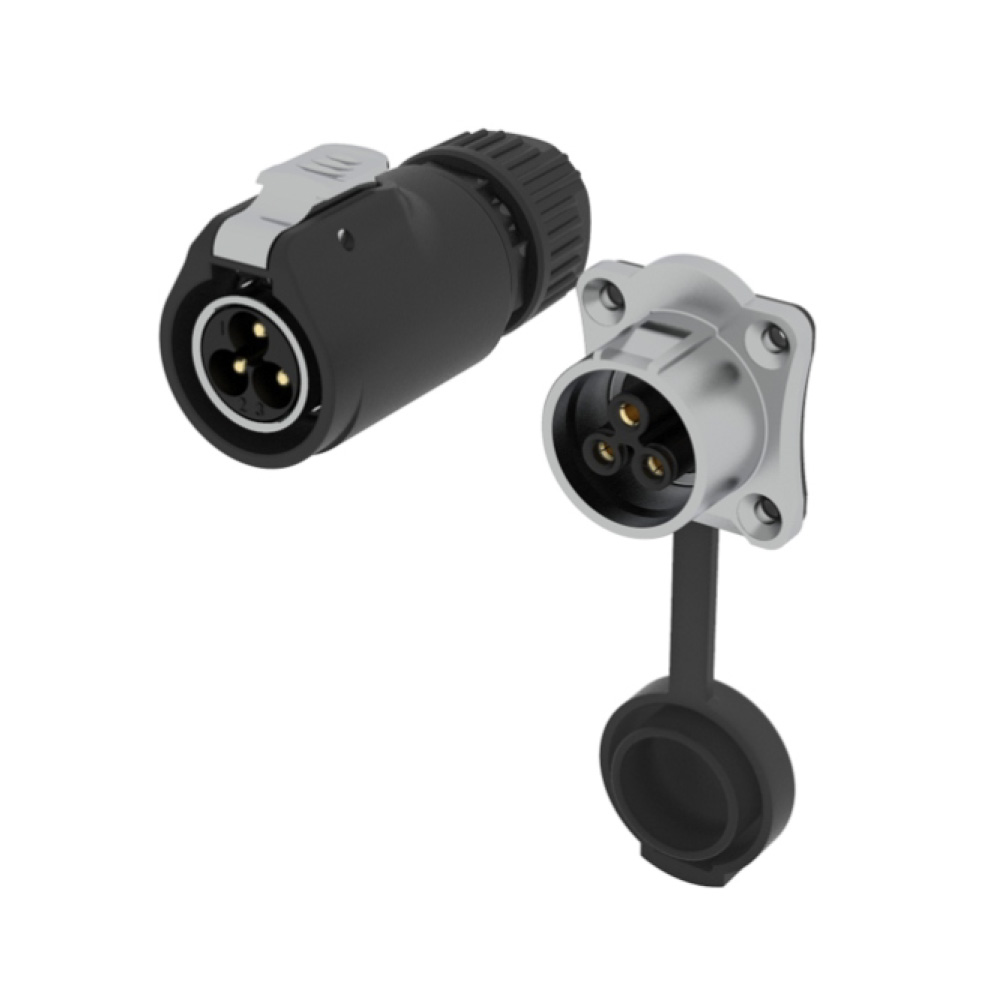

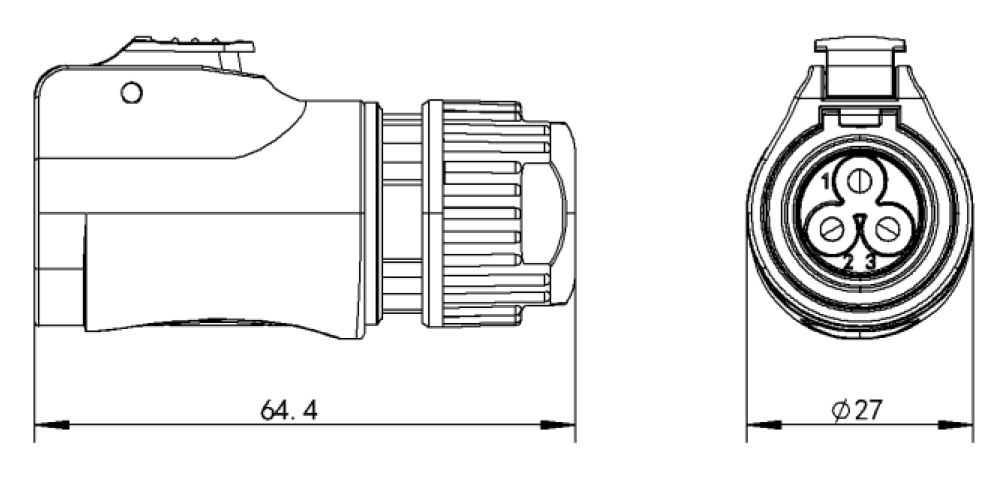

| NPA20M3M-S-2Au-A0 | Three core gold-plated connector plug |

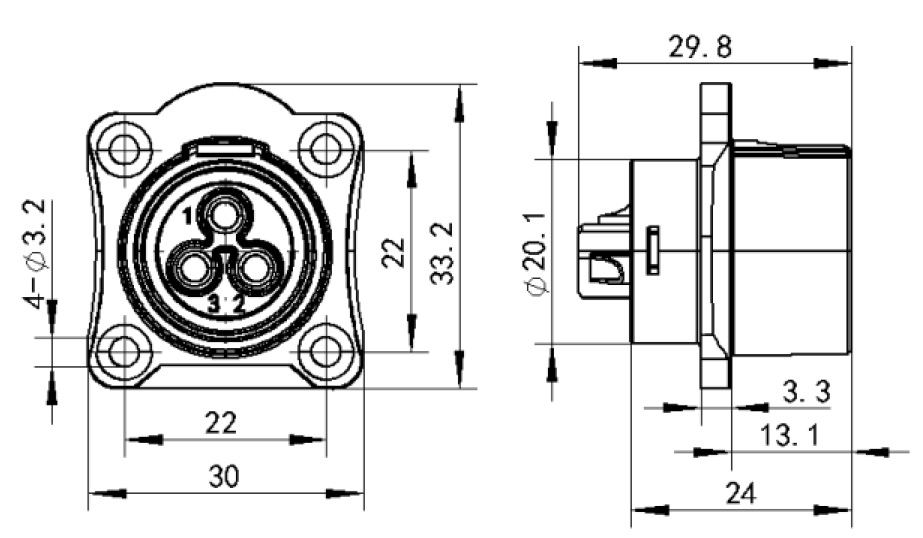

| NPA20F3F-S-2Au-A1 | Three core gold-plated connector socket |

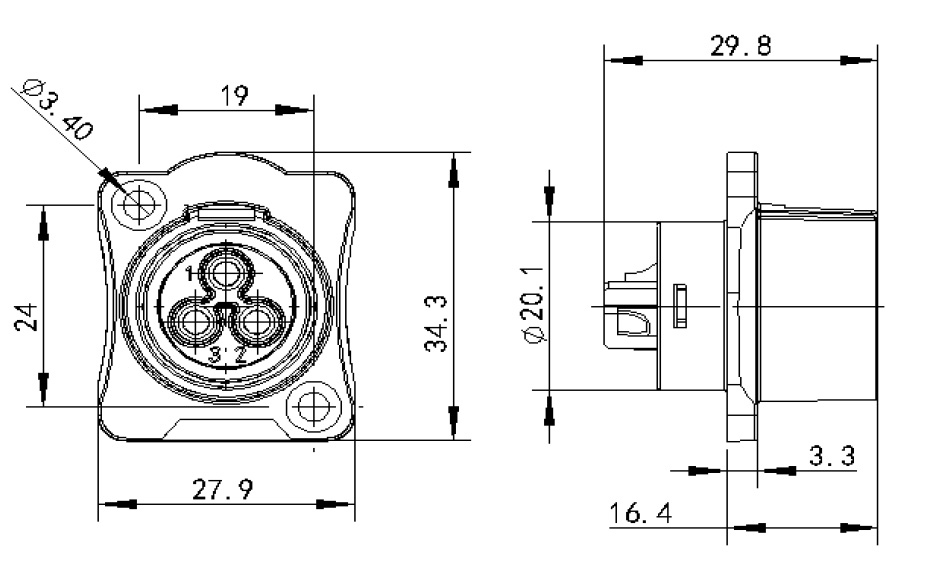

| NPA20F3F-S-2Au-A0 | Three core gold-plated connector socket |
Performance:
Lockable device AC connector
High current capacity rated at 20A/500VAC
High performance engineering plastics and zinc alloy chrome plated shells are very sturdy, reliable, and durable
UL5VA flame retardant material has good weather resistance and UV impact resistance
Provide IP65 compliant connection protection
Technical parameters:
Number of contacts: 3 cores
Contact: Copper alloy gold-plated male pin, bronze gold-plated female pin
Applicable wire diameter: outer diameter<∅ 12mm, wire specification 4mm ²/12AWG
Rated voltage and current: 500VAC/20A
Contact resistance:<1m Ω
Insulation resistance:>5000MΩ
Voltage endurance: 2.5KV
Wiring type: Welding type
Working temperature: -25 ℃~85 ℃
